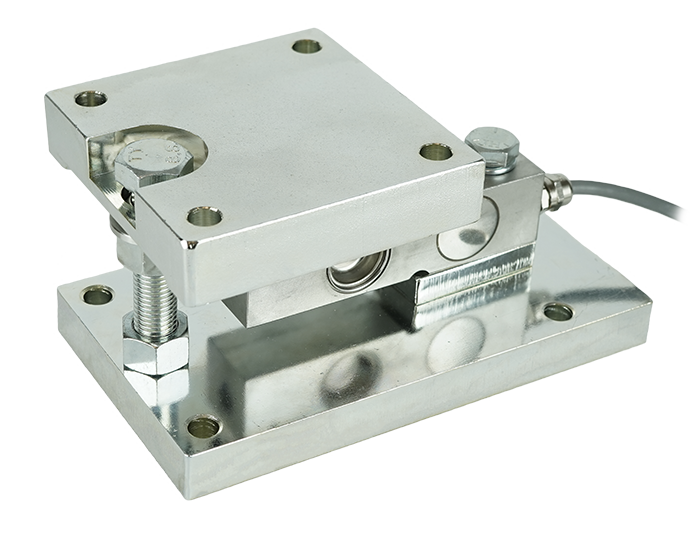

The TankMount Weigh Module

The SINGLE ENDED SHEAR BEAM WEIGH MODULE That Turns Any TANK, HOPPER or BIN into a SCALE

You have tanks, hoppers, and bins already in place — and now you need to weigh what’s inside them. Ripping out existing structures and starting over is not an option. What you need is a cost-effective tank weighing solution that retrofits under your existing vessel legs, delivers accurate weight data for level monitoring and process control, and holds up in the corrosive, wash-down, and hazardous environments found across process industries.

BLH Nobel’s TankMount weigh module does exactly that. A single ended shear beam weigh module with a semi-floating design, TankMount converts tanks, hoppers, bins, bunkers, and vessels into accurate weighing systems — without redesigning the support structure. With capacities up to 5 tonnes, OIML certification, IP68 and IP69K sealing, and ATEX and FM approval available, TankMount is the proven, off-the-shelf solution for converting existing infrastructure into reliable process weighing and level monitoring systems.

• Single ended shear beam transducer Industry need: Reliable measurement in a small, easy-to-install package. A stainless steel beam transducer provides accurate, repeatable weight measurement in a compact form factor. The shear beam design ensures stability and resistance to off-center loading.

• Semi-floating module design Industry need: Stable weighing on real-world structures that are never perfectly aligned. Restricts lateral horizontal movement while allowing radial horizontal movement and a moderate degree of angular movement. This accommodates construction variances and thermal expansion without check rods or stay rods.

• IP68 and IP69K sealed Industry need: Long-term reliability in wash-down, corrosive, and outdoor environments. The load beam sealing meets IP68 and IP69K requirements, providing full protection against water ingress, high-pressure wash-down, and submersion.

• Capacities up to 5 tonnes Industry need: Right-sized capacity for ingredient bins, process vessels, and storage tanks. Available in 500, 1,000, 2,000, and 5,000 kg, covering the most common small to medium tank, hopper, and bin weighing applications.

​​​​​

• OIML certified Industry need: Verified accuracy that meets international metrological standards. Approved for trade and legal-for-trade applications, giving confidence in measurement accuracy for billing, inventory, and regulatory compliance.

• ATEX and FM approved versions available Industry need: Safe, compliant operation in explosive atmospheres. Certified for use where flammable gases, vapours, or dust are present — suitable for chemical, pharmaceutical, oil & gas, and other hazardous area process weighing applications.

• Stainless steel construction Industry need: Corrosion resistance and cleanability in regulated industries. Both shear beam load cell and mounting hardware available in stainless steel, with plated steel hardware as standard. A true stainless steel shear beam weigh module for hygienic and corrosive process environments.

• Retrofit-ready design Industry need: Adding weighing capability to existing installations quickly and cost-effectively. Specifically engineered for load cell retrofit on existing structures. Install under existing vessel legs or support points with minimal modification — turning tanks, hoppers, and containers into scales without civil works or structural redesign.

​​​​​​​

• Integrated tilt guard Industry need: Fewer components, faster installation, lower cost. No need for extra mounting supplements. The built-in tilt guard simplifies installation and ensures the module stays aligned under load.

​​​​​​​​​​​​​​

• Compatible with BLH Nobel instruments Industry need: One supplier for module, instrument, and junction box. Pairs with the WIN5 weight indicator for simple applications or the G5 process instrument for advanced process control. The CGS4-C ATEX junction box enables multi-cell connection in hazardous areas. A complete process control weighing module system from a single supplier.

Tank & Vessel Weighing

The core TankMount application. Install modules under a tank — typically three- or four-leg constructions — to monitor the weight of liquids, powders, and granules in storage and process vessels. The semi-floating design absorbs thermal expansion and construction tolerances, delivering stable data for inventory management and process feeding. A proven way to convert a tank into a scale without structural changes.

Hopper & Bin Weighing

For bulk material storage bunkers handling powders, granules, aggregates, or raw materials, TankMount provides reliable bin and bunker weighing data for level monitoring and material flow control. The IP68/IP69K sealing and stainless steel option handle the dust, moisture, and wash-down conditions found in these environments.

Bulk Weighing

Ingredient bins, dosing hoppers, and batch hoppers in food, chemical, and pharmaceutical plants need accurate weight data for recipe control and inventory. TankMount’s compact design and easy installation make it the natural hopper weighing module for facilities where space is tight and downtime for installation must be minimized.

Level Monitoring

Not every application needs high-precision process weighing — sometimes you need reliable level monitoring to know how much material is left in a vessel and when to reorder or refill. TankMount delivers accurate, gravimetric level data that is more reliable than ultrasonic or radar-based alternatives for weigh module powder and granules applications, because it measures actual mass regardless of material properties, foam, or dust.

Food & Beverage Processing

Stainless steel construction, IP69K wash-down rating, and OIML certification make TankMount the cost-effective choice for food and beverage ingredient weighing, batching, and inventory control. Clean-in-place compatibility ensures hygiene standards are maintained.

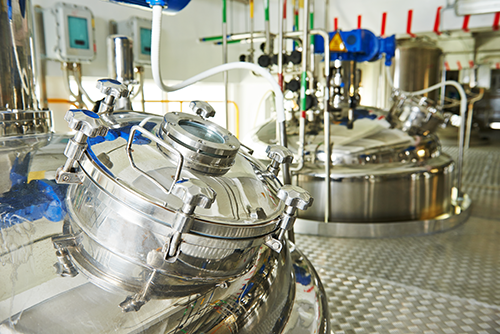

Pharmaceutical & Chemical Processing

With ATEX and FM approval, stainless steel construction, and full IP68 sealing, TankMount operates safely and accurately in chemical and pharmaceutical environments where hazardous materials, aggressive cleaning agents, and regulatory compliance are everyday realities.
